Configuring tables in the Bridge allows for optimal floor plan management, ensuring that tables can be efficiently reused across various Floor Plans and Revenue Centers. This functionality supports dynamic layout management for different occasions without the need to recreate table entities for each new floor plan.
Key aspects include:
- Creation and Management: Users can create and manage tables, specifying attributes such as name, shape, number of seats, and seat names.
- Reusable Entities: Tables designed are reusable across multiple floor plans, facilitating flexible space arrangement.
- Role-Specific Access: Only users with Manage Floor Plans permissions can configure tables.
Note:
- Tables must be pre-configured before incorporating them into floor plans.
- Configuration access is available from the main Floor Plan directory and during new floor plan creation.
To Create and Configure a Table from the Floor Plan Directory:

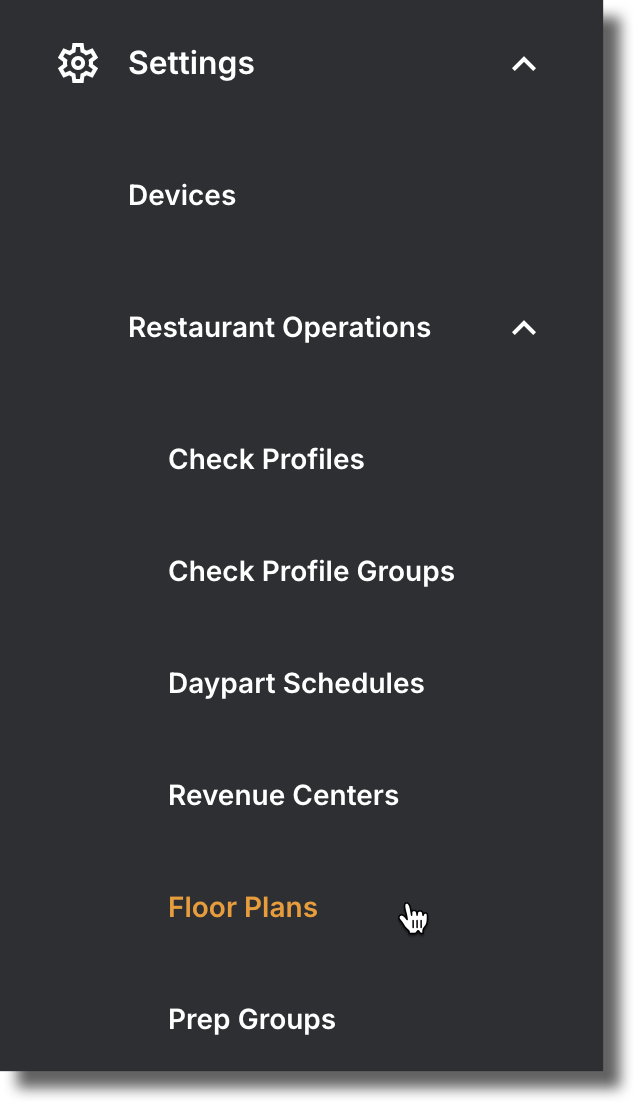

1. Navigate to Settings > Restaurant Operations in the Bridge and select Floor Plans

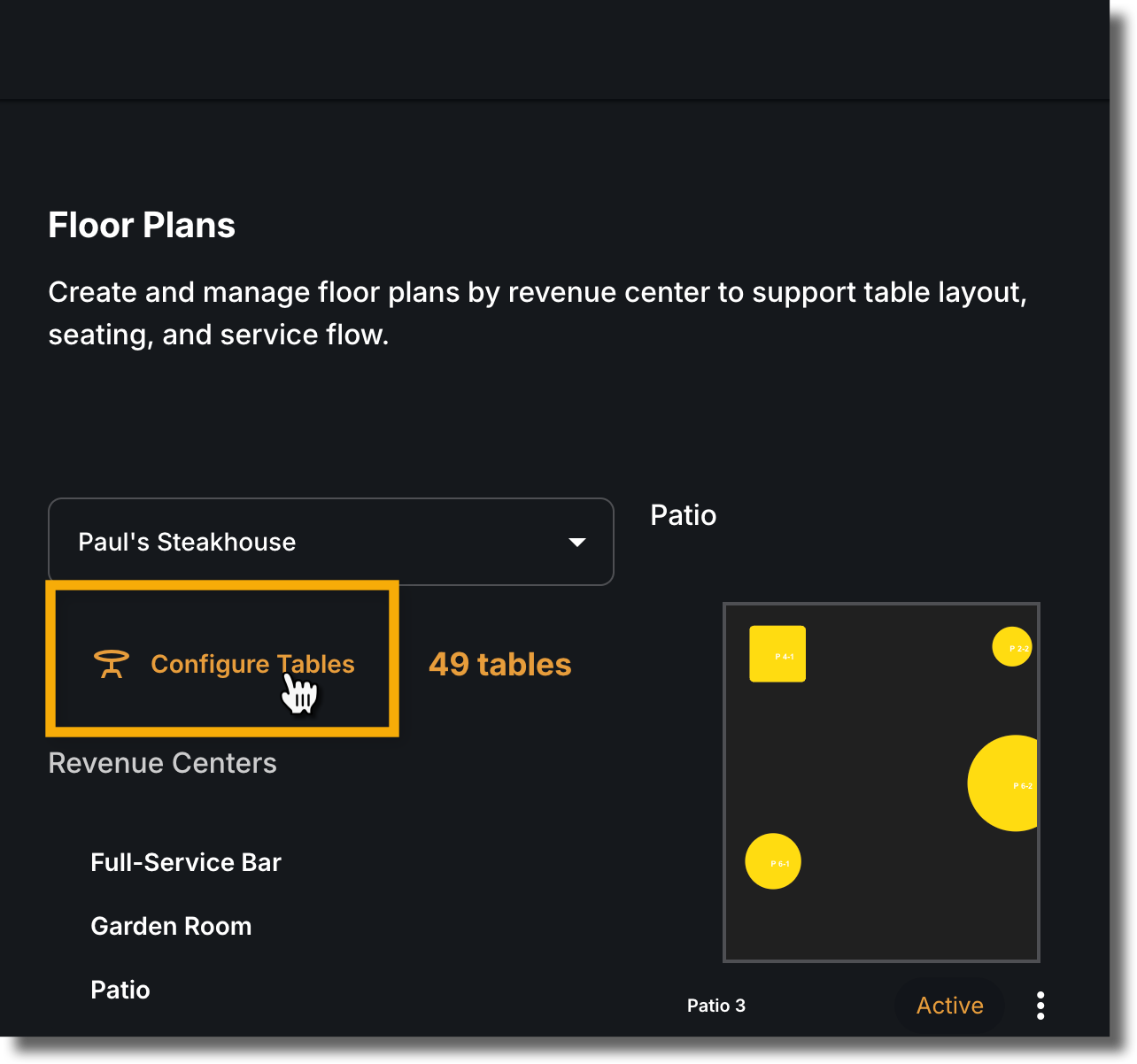

2. Click on Configure Tables to open the table list

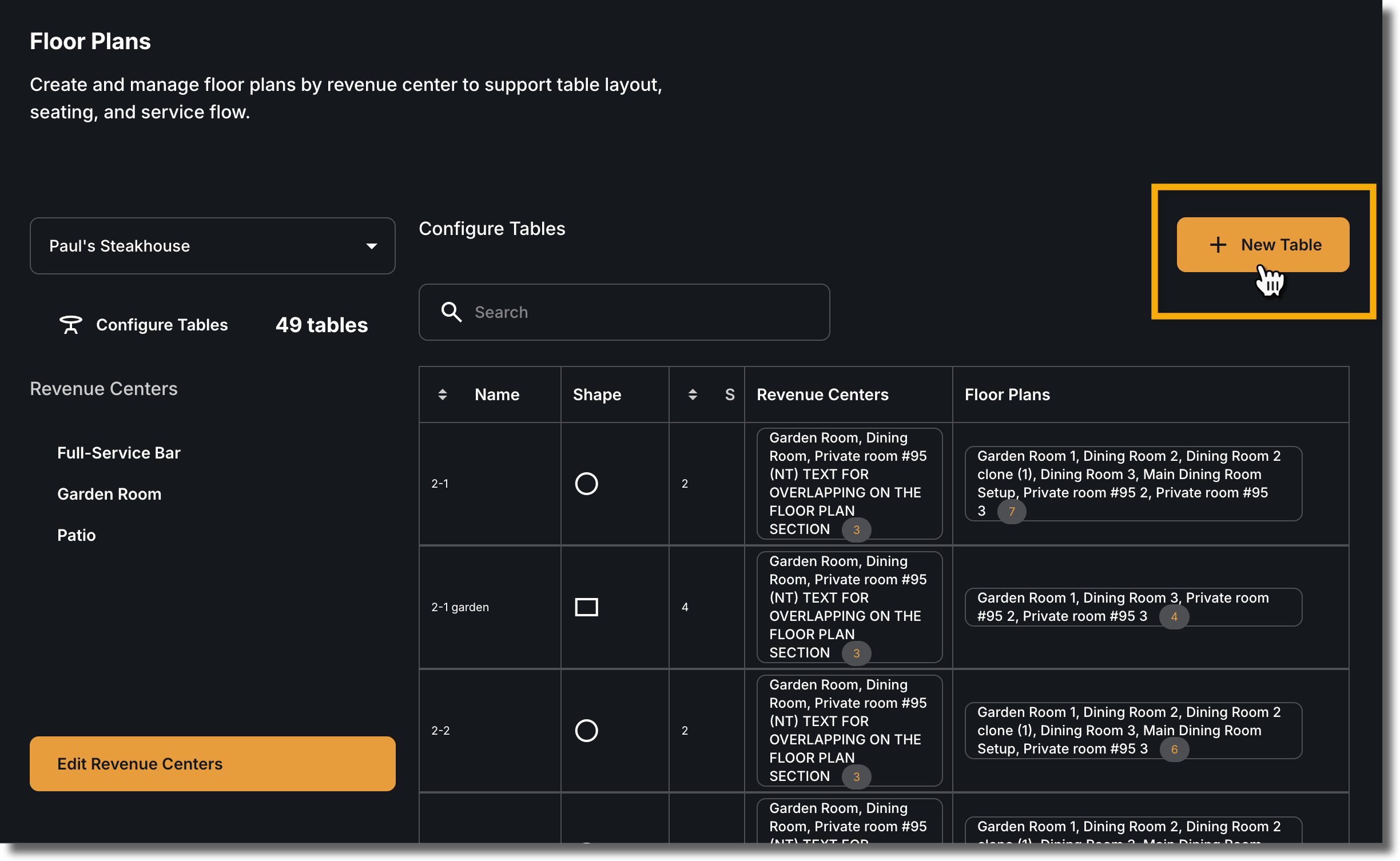

3. Add a new table by selecting the + New Table button located at the top right or bottom left

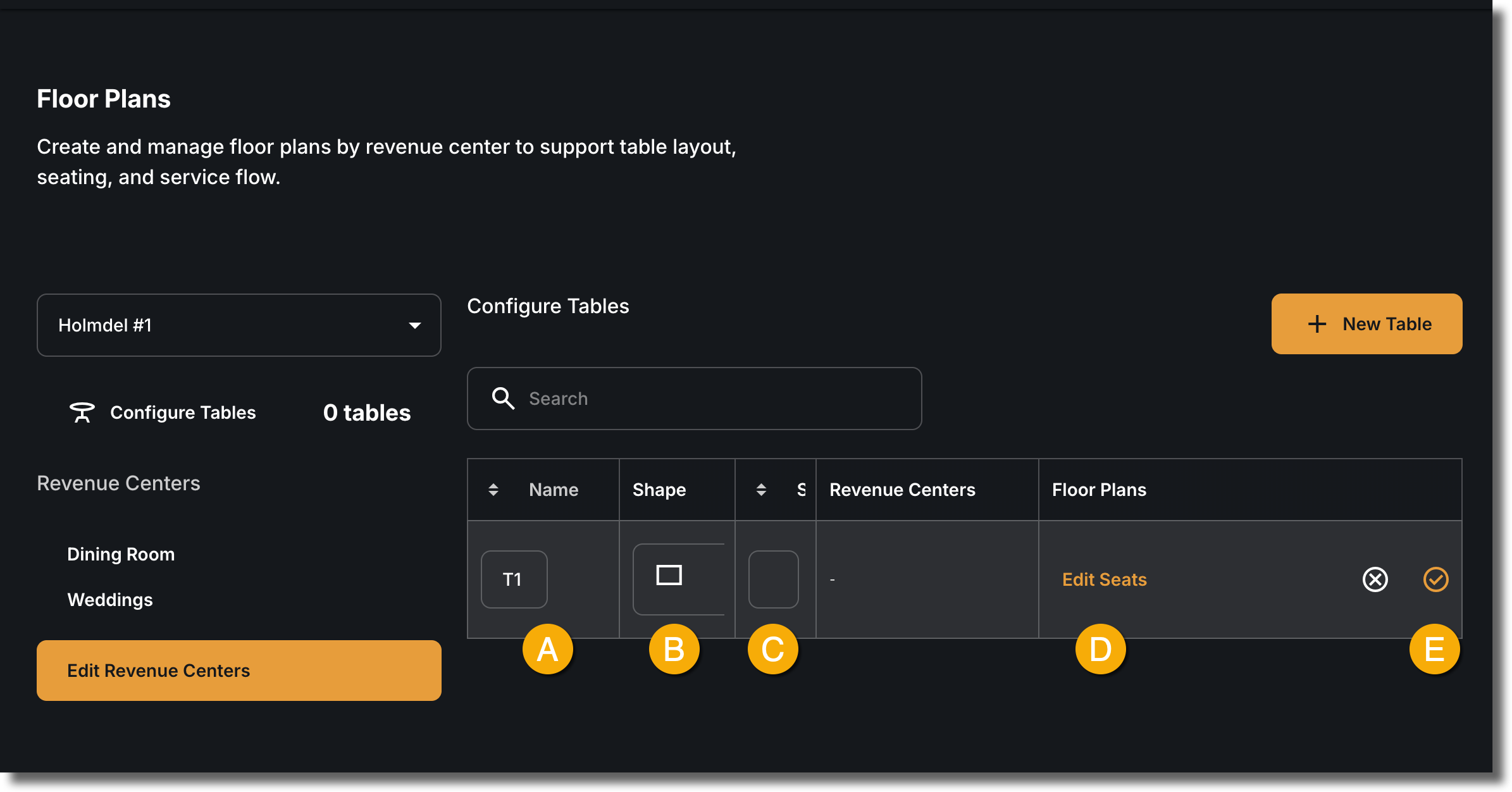

4. Enter table details:
A. Assign a unique Name
B. Choose the table Shape (e.g., circle, square)
C. Specify the number of Seats

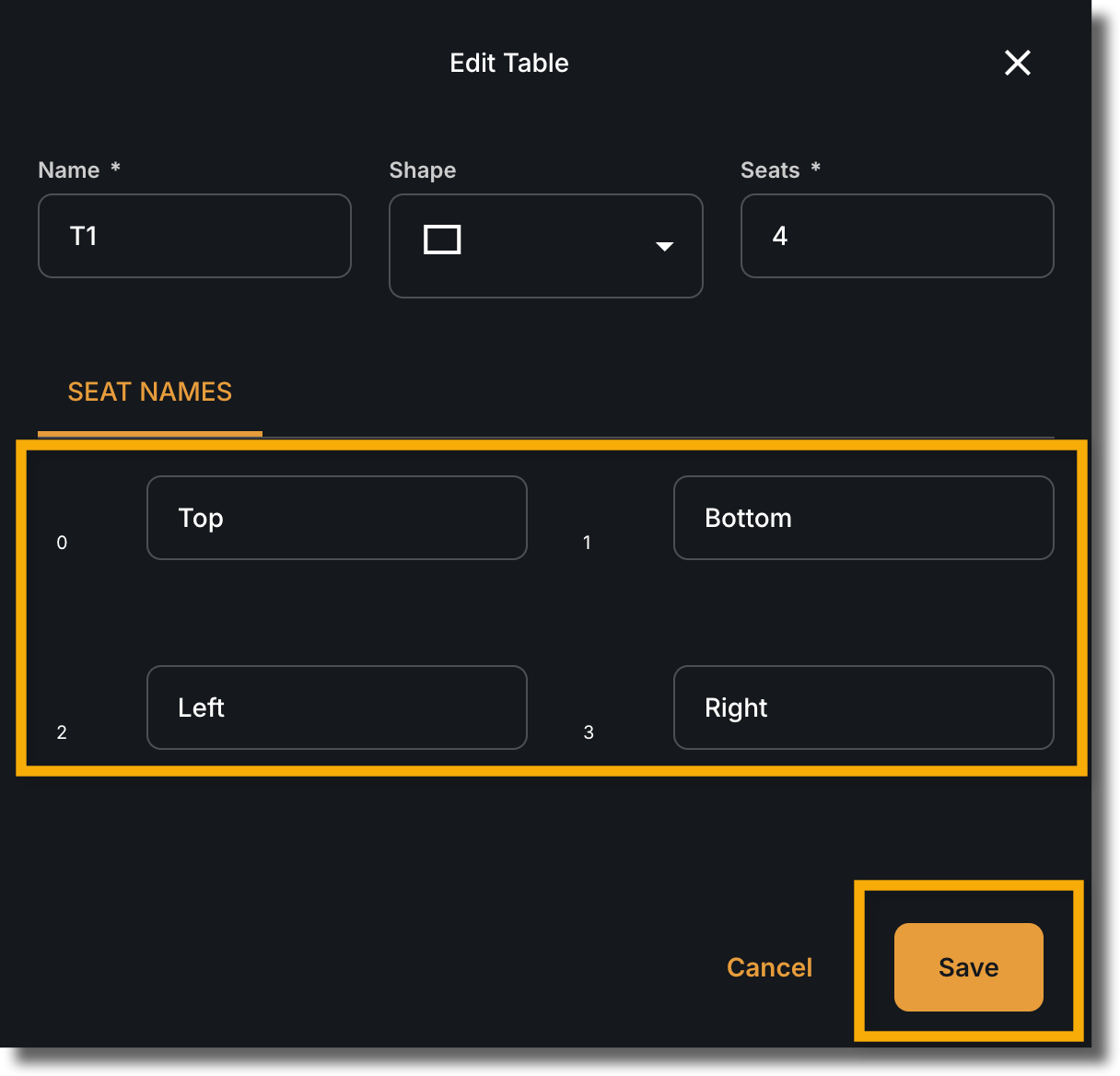

D. Optional: Customize seat names by selecting Edit Seats and then Save
E. Confirm the new table setup with the Save option
5. Repeat Steps 3 and 4 for all desired tables within your establishment
To Create and Configure a Table from the Floor Plan Creation Tool:
1. Follow the instructions on How to Create a Floor Plan at this link to open the Floor Plan Creation tool

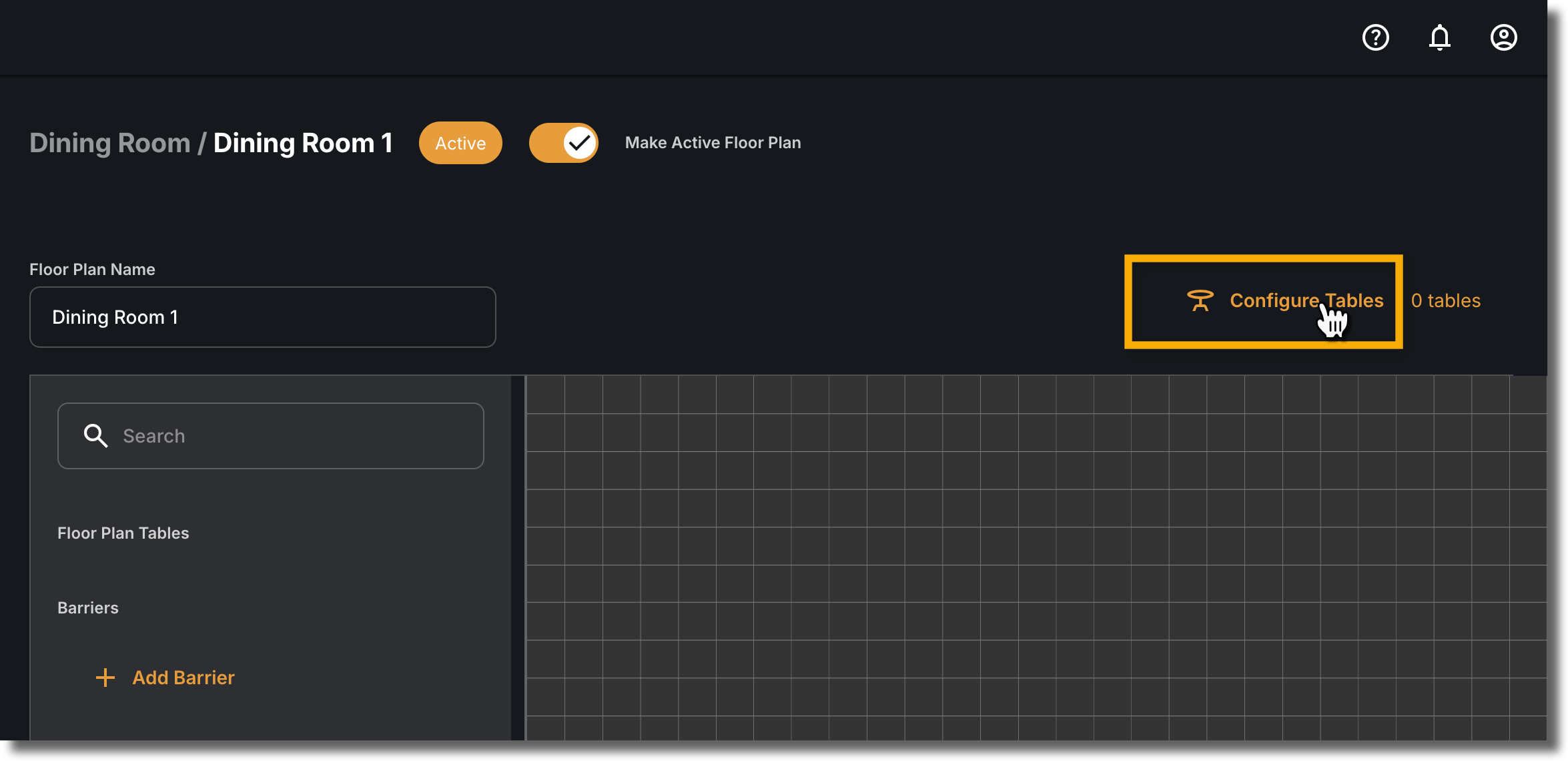

2. Click on Configure Tables to open the Table Creation interface

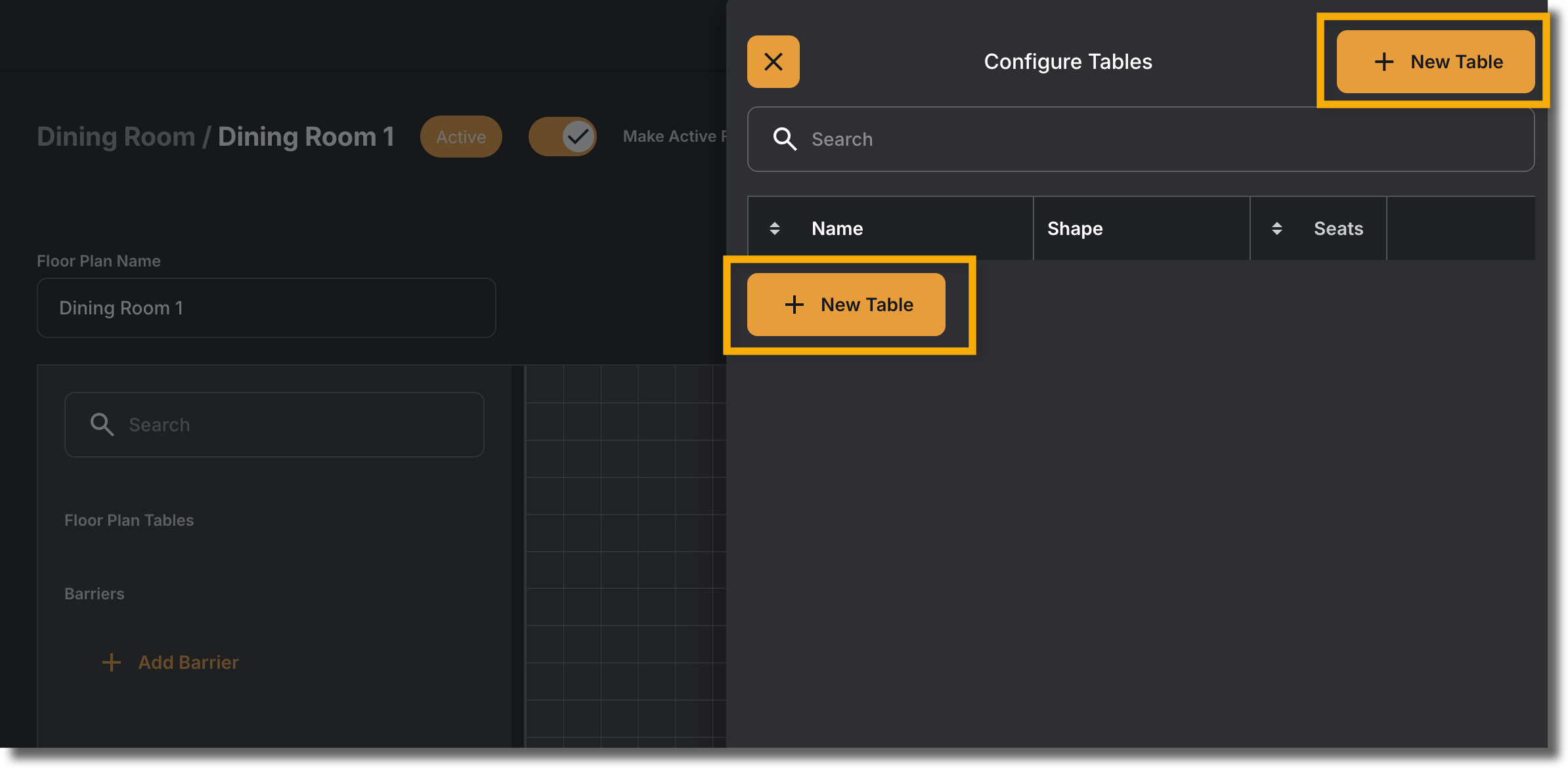

3. Add a new table by selecting the + New Table button located at the top right or bottom left

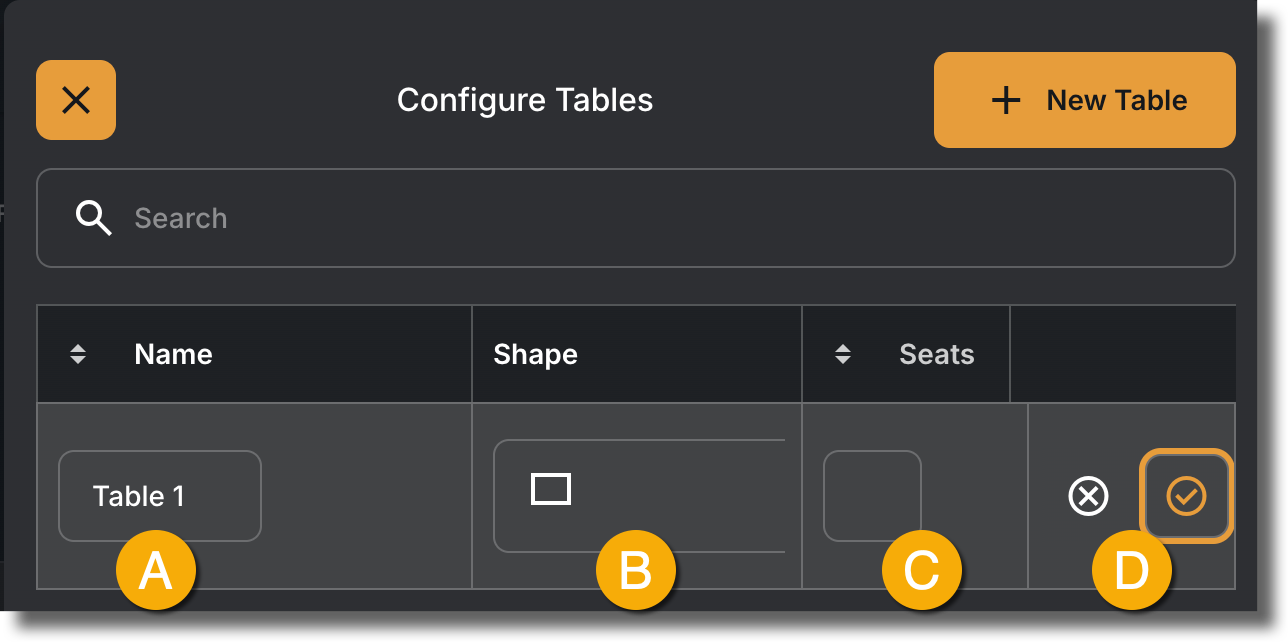

4. Configure the Table:
A. Assign a unique Name
B. Choose the table Shape (e.g., circle, square)
C. Specify the number of Seats
D. Confirm the new table setup with the Save option
5. Repeat Steps 3 and 4 for all desired tables within your establishment
